| Brand Name : | Leenz |
| Model Number : | LZANT-10555-A |
| Certification : | RoHs |
| Payment Terms : | T/T |
| Supply Ability : | 5K per day |
| Delivery Time : | 15 days |
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1710-3800MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 13dBi |
| Polarization | ±45° |
| Horizontal Beamwidth | 35±10° |
| Vertical Beamwidth | 35±10° |
| F/B | >17dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | 2*N Female connector |
| Dimension | 256*256*40mm |
| Radome material | ABS |
| Weight | 1.1Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
+45°
-45°
2.2 Total Efficiency & Gain:
| +45° | -45° | |||
| Frequency(MHz) | Gain(dBi) | Frequency(MHz) | Gain(dBi) | |
| 1700 | 12.73 | 1700 | 12.288 | |
| 1800 | 12.921 | 1800 | 12.813 | |
| 1900 | 12.739 | 1900 | 12.897 | |
| 2000 | 12.695 | 2000 | 12.695 | |
| 2100 | 13.342 | 2100 | 12.726 | |
| 2200 | 13.684 | 2200 | 12.862 | |
| 2300 | 12.8 | 2300 | 12.997 | |
| 2400 | 12.068 | 2400 | 13.071 | |
| 2500 | 13.463 | 2500 | 12.584 | |
| 2600 | 13.332 | 2600 | 12.991 | |
| 2700 | 13.213 | 2700 | 13.069 | |
| 2800 | 13.078 | 2800 | 12.27 | |
| 2900 | 12.696 | 2900 | 11.535 | |
| 3000 | 12.574 | 3000 | 11.611 | |
| 3100 | 11.128 | 3100 | 10.716 | |
| 3200 | 9.743 | 3200 | 9.7103 | |
| 3300 | 8.4141 | 3300 | 8.456 | |
| 3400 | 5.1362 | 3400 | 7.6234 | |
| 3500 | 3.4828 | 3500 | 6.7931 | |
| 3600 | 5.211 | 3600 | 4.7113 | |
| 3700 | 5.8529 | 3700 | 5.9975 | |
| 3800 | 7.5069 | 3800 | 7.5467 | |
| Port1 +45° | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 1710MHz |  |  |  |

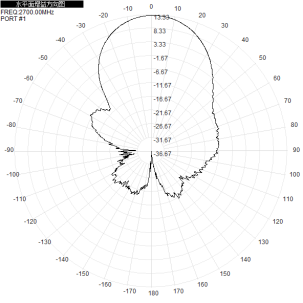

| 2700MHz |  |  |  |
| 3800MHz |  |  |  |
| Port2 -45° | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 1710MHz |  |  |  |
| 2700MHz |  |  |  |
| 3800MHz |  |  |  |
|
|
